Energy Saving Active Power Filter
Product introduction

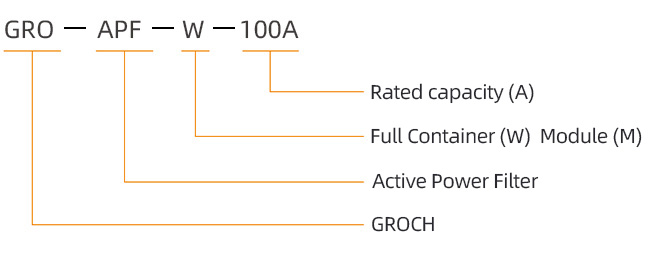

Type meaning
Product Characteristics
The perfect system of power quality
Harmonic compensation:
APF can filter 2 ~ 50 harmonics at the same time, or choose according to need to have a set number of harmonic current compensation and every harmonic compensati on rate.
Reactive power compensation:
Capacitive perceptual (1 ~ 1) s tepless compensating, PF 1.00 perfect reactive compens ation effect.
Three phase unbalanced compensation:
Unbalanced three-phase active compensation, imbalance of three phase reactive power compensation, split phase compensation.
APF can filter 2 ~ 50 harmonics at the same time, or choose according to need to have a set number of harmonic current compensation and every harmonic compensati on rate.
Reactive power compensation:
Capacitive perceptual (1 ~ 1) s tepless compensating, PF 1.00 perfect reactive compens ation effect.
Three phase unbalanced compensation:
Unbalanced three-phase active compensation, imbalance of three phase reactive power compensation, split phase compensation.
Lift the user appl ication stability comprehensive protection function
Learning function:
In addition to the Fourier algorithm, GROCH original smart Fourier algorithm, can automatically learn the grid environment and system impedance, avoid system oscillation effectively, make the system to achieve the most stable state of compensation.
Harmonic monitoring:
The process of load change, if appear resonance, APF self judgment and exit system, alarm at the same time, to avoid failure.
Temperature monitoring:
Real-time monitoring of ABC three-phase heating device (IGBT and inductance), temperature, thermal warnings when temperature is too high, shut down automatically to stop refuelling.
All kinds of protection:
APF has all kinds of protection function: over voltage, under voltage, over current, short circuit protection, etc.
In addition to the Fourier algorithm, GROCH original smart Fourier algorithm, can automatically learn the grid environment and system impedance, avoid system oscillation effectively, make the system to achieve the most stable state of compensation.
Harmonic monitoring:
The process of load change, if appear resonance, APF self judgment and exit system, alarm at the same time, to avoid failure.
Temperature monitoring:
Real-time monitoring of ABC three-phase heating device (IGBT and inductance), temperature, thermal warnings when temperature is too high, shut down automatically to stop refuelling.
All kinds of protection:
APF has all kinds of protection function: over voltage, under voltage, over current, short circuit protection, etc.
Join the design of the sys tem
Independent air duct:
Roach unique multilayer space heat dissipation design, can effectively isolate the environment dust adhesion, improve the product cooling efficiency, no additional consideration in the process of design for environment Element, system can adapt to different environment.
Modular design:
GROCH APF adopting modular design, small size light weight, installation without crane, forklift trucks and other large equipment, time and manpower. Wall design, installation Flexible, especially suitable for the place of the space is little.
Flexible stability:
25-100 A capacity of five modules, any capacity combination weaver, single tank capacity of up to 600 a, meet the demand of different capacity. Any module can realize all the work problems can, any module, the module will be able to run normally, in order to ensure the continuity of the safe operation of the system.
Roach unique multilayer space heat dissipation design, can effectively isolate the environment dust adhesion, improve the product cooling efficiency, no additional consideration in the process of design for environment Element, system can adapt to different environment.
Modular design:
GROCH APF adopting modular design, small size light weight, installation without crane, forklift trucks and other large equipment, time and manpower. Wall design, installation Flexible, especially suitable for the place of the space is little.
Flexible stability:
25-100 A capacity of five modules, any capacity combination weaver, single tank capacity of up to 600 a, meet the demand of different capacity. Any module can realize all the work problems can, any module, the module will be able to run normally, in order to ensure the continuity of the safe operation of the system.
Good man-machine interaction experience
Monitoring:
GROCH APF multiple monitoring methods for different type machines, including a 3.8-inch LCD display, a 4.3-inch touch screen, 8 inches full color LCD touch screen and background monitoring software, to adapt to the needs of different users.
Monitoring data:
Through the monitoring system of APF, the user can clearly understand such as the waveform diagram before and after the compensation system, the spectrum diagram, and the size of the current RMS, THDi, THDu , power number, active power, reactive power, apparent power and other power quality improvement of the system.
GROCH APF multiple monitoring methods for different type machines, including a 3.8-inch LCD display, a 4.3-inch touch screen, 8 inches full color LCD touch screen and background monitoring software, to adapt to the needs of different users.
Monitoring data:
Through the monitoring system of APF, the user can clearly understand such as the waveform diagram before and after the compensation system, the spectrum diagram, and the size of the current RMS, THDi, THDu , power number, active power, reactive power, apparent power and other power quality improvement of the system.
Harm of harmonic
Harm to the network
1. triggering control equipment, refusal or misoperation of relay protectiondevices and burn equipment or faulty tripping.
2. reduce the power factor, wasting energy.
3. reduce circuit breaker breaking capacity, increasing the circuit breakercapacity configurations.
4. cable losses, reducing the transmission capacity to accelerate the cableinsulation ageing and shortened cable life.
2. reduce the power factor, wasting energy.
3. reduce circuit breaker breaking capacity, increasing the circuit breakercapacity configurations.
4. cable losses, reducing the transmission capacity to accelerate the cableinsulation ageing and shortened cable life.
Damage to the equipment
1. local parallel resonant and resonant, seriously lowering supply security, resulting in frequent tripping and even damaged the capacitor Cabinet.
2. burned counters capacitance capacitors and protection components, busbar.
3. transformer copper and iron losses and stray losses, leading to lowerfever as well as the effective capacity of the transformer.
4. reduce load volume.
5. shorten the life of electrical equipment and precision instruments, or even damage the device.
2. burned counters capacitance capacitors and protection components, busbar.
3. transformer copper and iron losses and stray losses, leading to lowerfever as well as the effective capacity of the transformer.
4. reduce load volume.
5. shorten the life of electrical equipment and precision instruments, or even damage the device.
| Item | 200V-400V | 480V | 690V | 480V-690V ( North American models ) |
|---|---|---|---|---|
| GRO-APF 5/10/15/025/35/050/060/075/100/150 | GRO-APF 075/150/225/300 | GRO-APF 075/150/225/300 | GRO-APF 090 | |
| System parameter | ||||
| Rated input line voltage | 200V(-20%~ +20%); 380V(-40% ~ +20% ); 220V ( -40% ~ +20% ){單相APF} | 480V ( -20% ~ +20% ) | 690V ( -20% ~ +20% ) | 480V(-20% ~ +15%); 600V(-30% ~ +15% ); 690V (-30% ~ +15% ) |
| Grid frequency | 50/60Hz ( Range: 45Hz ~ 62Hz ) | 50/60Hz ( Range: 45Hz ~ 62.5Hz ) | 50/60Hz ( Range:45Hz ~ 62Hz ) | |
| Number of parallel units | Unlimited | |||
| Overall efficiency | ≥97% | |||
| Grid structure | Three phases three wires, three phases four wires | Three phase three wire | Three phases three wires, three phases four wires | |
| Current transformer | 150/5 ~ 10,000/5 | |||
| Circuit topology | multi-level inverters | |||
| Performance index | ||||
| Rated capacity | 5A/10A/15A/025A/35A/050A/060A/075A/100A/150A | 075A/150A/225A/300A | 90A | |
| Harmonic compensation | Support | |||
| Reactive power compensation | Support | |||
| Unbalance compensation | Support | |||
| Filter range | 2 ~ 50 times | |||
| Filter frequency selection | 2 ~ 50 times This parameter is optional | |||
| Filtering degree | 2 ~ 50 times any number of adjustable | |||
| Harmonic filtering rate | > 95% ( Third party inspection data) | |||
| Fast response time | < 50μs | < 100μs | < 50μs | |
| Full response time | < 5ms | < 20ms | < 5ms | |
| Target power factor | The value is adjustable from -1 to 1 | |||
| Control algorithm | FFT algorithm, intelligent FFT algorithm, instantaneous reactive power algorithm | |||
| Switching frequency | 20kHz | |||
| Intelligent air cooling | 75L/Sec、151L/Sec、300L/Sec、405L/Sec | 380/760/1140/1520 ( L/Sec) | 359L/Sec | |
| Noise index | < 56dB | < 65dB | ||
| Communication monitoring capability | ||||
| Communication interface | RS485, Network port (optional) | |||
| Communication protocol | Modbus protocol, TCP/IP | |||
| Module display interface | LCD multi-function touch color screen; LED indicator | 7 "touch LCD screen | 7 inch LCD display (rack); 4.3 inch LCD screen (Wall mounted) | |
| PC software | Optional | |||
| Protection function | Overvoltage protection, undervoltage protection, short circuit protection, inverter bridge reverse protection, overcompensation protection | |||
| CT monitoring alarm | Yes | |||
| Fault alarm | Yeah, up to 500 alarm logs | |||
| Supervisory control | Supports independent monitoring or centralized monitoring | |||
| Mechanical characteristic | ||||
| Installation mode | Wall mounted/rack mounted | Full cabinet type | Rack/wall mounted | |
| Size (width * depth * height; mm3) | 440*470*150、440*590*190、440*600*230、500*510*270 | 800*600*2200 | 500*590*250 | |
| Net weight | 18kg、35kg、36kg、48kg | 290-560kg | 62kg | |
| Color | Black fine sand grain | Light grey (GB 7035)\ or customized | Black | |
| Environmental requirement | ||||
| Altitude | ≤1500m, between 1500 and 4000m, according to the national standard GB/T3859.2, each increase of 100m, the power is reduced by 1% | |||
| Operating temperature | -10℃~ +40℃ | —20°C to 40°C(If the value exceeds 40°C, the device may automatically derate.) | ||
| Relative humidity | 5%~ 95% , No condensation | |||
| Class of protection | IP20, other IP levels can be customized | |||
| Relevant standard | ||||
| Compliance with standards | IEEE519、IEC 61000-3-6 , ER G5/4 | |||
